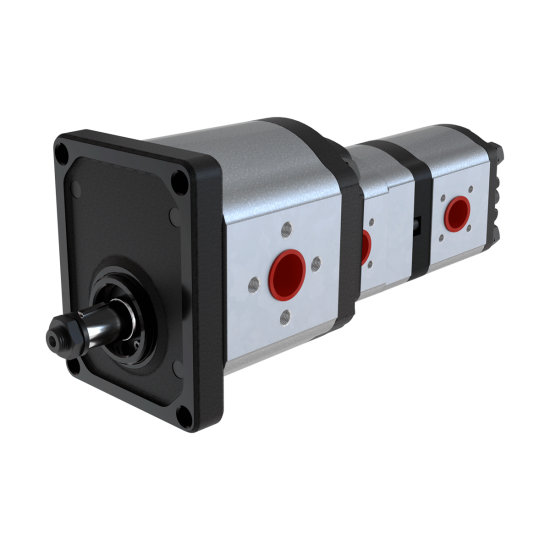

Tandem Pump Aluminum Body Group 30-20-20

 Tandem Pump Aluminum Body Group 30-20-20
Tandem Pump Aluminum Body Group 30-20-20

Description

Tandem Pump Aluminum Body Group 30-20-20
  • Model: AP30/AP20/AP20
$0.00
Ex Tax: $0.00
Specifications
Displacement 19cc – 100cc
Max.Speed 3000 rpm
Max.Pressure 230 bar
Body Type Aluminium Body
Pump type Displacement(cc³/dev) Max.Pressure(Bar) Max.Speed(Rpm) Min.Speed(Rpm)
AP30.190/AP20.***/*** 19,0 230 3000 500
AP30.220/AP20.***/*** 22,0 230 3000 500
AP30.250/AP20.***/*** 25,0 230 3000 500
AP30.280/AP20.***/*** 28,0 230 3000 500
AP30.320/AP20.***/*** 32,0 230 2750 500
AP30.350/AP20.***/*** 35,0 210 2750 500
AP30.380/AP20.***/*** 38,0 210 2750 500
AP30.420/AP20.***/*** 42,0 210 2750 500
AP30.450/AP20.***/*** 45,0 210 2500 500
AP30.510/AP20.***/*** 51,0 200 2250 500
AP30.560/AP20.***/*** 56,0 180 2000 500
AP30.610/AP20.***/*** 61,0 180 2500 400
AP30.730/AP20.***/*** 73,0 170 2500 400
AP30.820/AP20.***/*** 82,0 160 2000 400
AP30.900/AP20.***/*** 90,0 150 2000 400
AP30.1000/AP20.***/*** 100,0 140 2000 400
