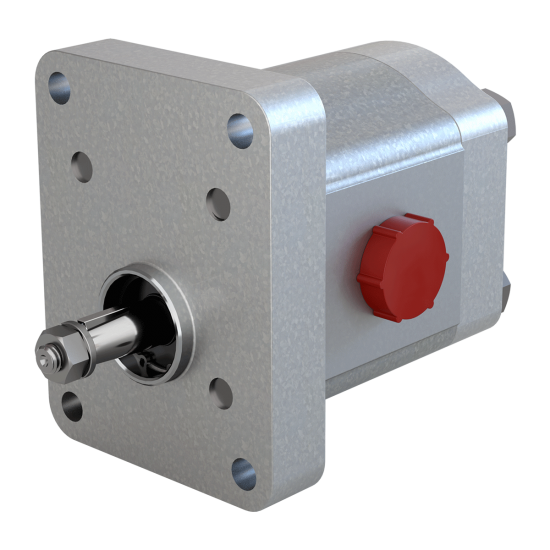

Aluminum Body Gear Pump - Group 10
Description
These are gear pumps with aluminum body.
The Group 10 series has a displacement volume ranging from 0,9 cc to 9.5 cc.
- Model: AP10
$0.00
Ex Tax: $0.00
Specifications | |
Gear Type | Normal Gear |
Displacement | 1,0 cc – 9,5 cc |
Max.Speed | 4000 rpm |
Max.Pressure | 220 bar |
Body Type | Aluminum Body |
Tags:
hydraulic pumps
, gear pumps
, hydraulic gear pumps
, aluminum gear pump
, aluminum body gear pump
Pump Type | Displacement(cc³/dev) | Max.Pressure(Bar) | Max.Speed(Rpm) | Min.Speed(Rpm) |
AP10.009 | 0,9 | 220 | 4000 | 650 |
AP10.012 | 1,2 | 220 | 4000 | 650 |
AP10.017 | 1,7 | 220 | 4000 | 650 |
AP10.023 | 2,3 | 220 | 4000 | 650 |
AP10.027 | 2,7 | 220 | 4000 | 650 |
AP10.032 | 3,2 | 220 | 4000 | 650 |
AP10.038 | 3,8 | 220 | 3500 | 650 |
AP10.043 | 4,3 | 220 | 3500 | 650 |
AP10.050 | 5,0 | 220 | 3500 | 650 |
AP10.059 | 5,9 | 220 | 3500 | 650 |
AP10.063 | 6,3 | 220 | 3500 | 650 |
AP10.078 | 7,8 | 210 | 3500 | 650 |
AP10.095 | 9,5 | 200 | 3500 | 650 |
