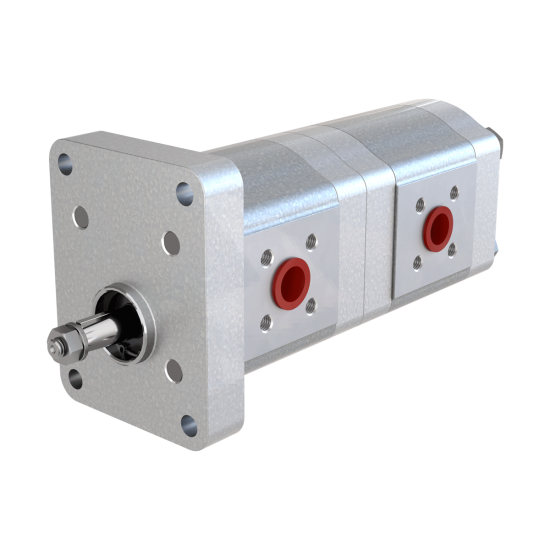

Aluminum Tandem Pump - Group 10/10
Description
Aluminum body tandem gear pumps are formed by the combination of 2 pumps.
These products are typically used in systems that require dual pump feeding.
They provide transfer between oil compartments and are not suitable for different oil usage.
For Group 10 tandem pumps, the displacement volume ranges from 0.9 cc to 9.5 cc.
- Model: AP10/AP10
$0.00
Ex Tax: $0.00
Specifications | |
Gear Type | Normal Gear |
Displacement | 1,0 cc – 9,5 cc |
Max.Speed | 4000 rpm |
Max.Pressure | 220 bar |
Body Type | Aluminum Body |
Tags:
hydraulic pumps
, gear pumps
, hydraulic gear pumps
, aluminum body gear pump
, aluminum gear pump
, aluminum tandem pump
, tandem pump
, aluminum tandem gear pump
Pump Type | Displacement(cc³/dev) | Max.Pressure(Bar) | Max.Speed(Rpm) | Min.Speed(Rpm) |
AP10.009/*** | 0,9 | 220 | 4000 | 650 |
AP10.012/*** | 1,2 | 220 | 4000 | 650 |
AP10.017/*** | 1,7 | 220 | 4000 | 650 |
AP10.023/*** | 2,3 | 220 | 4000 | 650 |
AP10.027/*** | 2,7 | 220 | 4000 | 650 |
AP10.032/*** | 3,2 | 220 | 4000 | 650 |
AP10.038/*** | 3,8 | 220 | 3500 | 650 |
AP10.043/*** | 4,3 | 220 | 3500 | 650 |
AP10.050/*** | 5,0 | 220 | 3500 | 650 |
AP10.059/*** | 5,9 | 220 | 3500 | 650 |
AP10.063/*** | 6,3 | 220 | 3500 | 650 |
AP10.078/*** | 7,8 | 210 | 3500 | 650 |
AP10.095/*** | 9,5 | 200 | 3500 | 650 |
