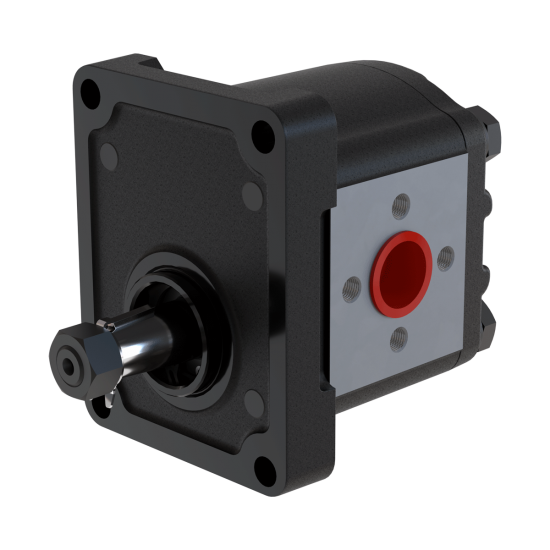

Cast Iron Body Gear Pump - Group 20
Description
The cast iron body gear pump has been designed to operate under heavy pressure conditions.
These bodies are made of spheroidal cast iron to easily overcome challenging conditions.
The cast iron body gear pumps of Group 20 have a transmission capacity ranging from 3.9 cc to 27.9 cc.
- Model: DKP20
$0.00
Ex Tax: $0.00
Specifications | |
Gear Type | Normal Gear |
Displacement | 4,0 cc – 28,0 cc |
Max.Speed | 3500 rpm |
Max.Pressure | 280 bar |
Body Type | Cast Iron Body |
Pump Type | Displacement(cc³/dev) | Max.Pressure(Bar) | Max.Speed(Rpm) | Min.Speed(Rpm) |
DKP20.040 | 3,9 | 320 | 3500 | 650 |
DKP20.060 | 5,9 | 320 | 3500 | 650 |
DKP20.080 | 8,0 | 320 | 3500 | 650 |
DKP20.095 | 9,4 | 320 | 3500 | 600 |
DKP20.115 | 11,4 | 320 | 3000 | 600 |
DKP20.140 | 13,9 | 300 | 3000 | 600 |
DKP20.160 | 16,0 | 300 | 3000 | 600 |
DKP20.190 | 19,2 | 280 | 3000 | 600 |
DKP20.220 | 21,9 | 250 | 2500 | 600 |
DKP20.250 | 24,8 | 230 | 2500 | 600 |
DKP20.280 | 27,9 | 210 | 2200 | 600 |
