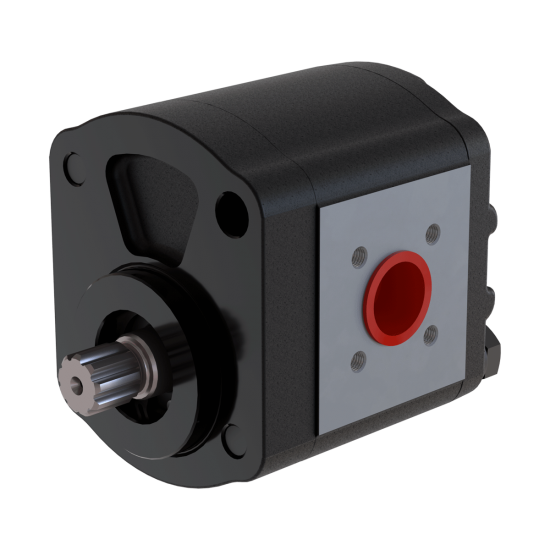

Cast Iron Body Motor - Group 20

Description

The cast iron body gear motor has been designed to operate under heavy pressure conditions.

These bodies are made of spheroidal cast iron to easily overcome challenging conditions.

The cast iron body gear motors of Group 20 have a transmission capacity ranging from 3.9 cc to 27.9 cc.

Model: DKM20

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Specifications
Displacement	4,0 cc – 28,0 cc
Max.Speed	3500 rpm
Max.Pressure	280 bar
Body Type	Cast Iron Body

Tags: hydraulic motors , gear motors , hydraulic gear motors , cast body gear motor , cast gear motor

Motor Type	Displacement(cc³/dev)	Max.Pressur(Bar)	Max. Speed(Rpm)	Min. Speed(Rpm)
DKM20.040	3,9	280	3500	650
DKM20.060	5,9	280	3500	650
DKM20.080	8,0	280	3500	650
DKM20.095	9,4	280	3500	600
DKM20.115	11,4	280	3000	600
DKM20.140	13,9	280	3000	600
DKM20.160	16,0	260	3000	600
DKM20.190	19,2	220	3000	600
DKM20.220	21,9	190	2500	600
DKM20.250	24,8	160	2500	600
DKM20.280	27,9	160	2200	600
