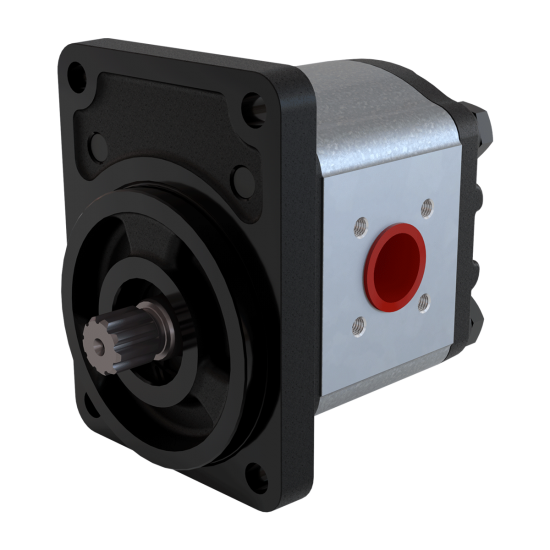

Aluminum Body Gear Pump - Group 20
Description
These are gear pumps with aluminum body.
The Group 20 series has a transmission capacity ranging from 3.9 cc to 40.0 cc.
- Model: AP20
$0.00
Ex Tax: $0.00
Specifications | |
Gear Type | Normal Gear |
Displacement | 4,0 cc – 40,0 cc |
Max.Speed | 3500 rpm |
Max.Pressure | 250 bar |
Body Type | Aluminum Body |
Tags:
hydraulic pumps
, gear pumps
, hydraulic gear pumps
, aluminum gear pump
, aluminum body gear pump
Pump Type | Displacement(cc³/dev) | Max.Pressure(Bar) | Max.Speed(Rpm) | Min.Speed(Rpm) |
AP20.040 | 3,9 | 250 | 3500 | 650 |
AP20.060 | 5,9 | 250 | 3500 | 650 |
AP20.080 | 8,0 | 250 | 3500 | 650 |
AP20.095 | 9,4 | 250 | 3500 | 600 |
AP20.115 | 11,4 | 250 | 3000 | 600 |
AP20.140 | 13,9 | 250 | 3000 | 600 |
AP20.160 | 16,0 | 250 | 3000 | 600 |
AP20.190 | 19,2 | 250 | 3000 | 600 |
AP20.220 | 21,9 | 210 | 2500 | 600 |
AP20.250 | 24,8 | 190 | 2500 | 600 |
AP20.280 | 27,9 | 170 | 2200 | 600 |
AP20.320 | 32,0 | 160 | 2000 | 500 |
AP20.340 | 34,0 | 150 | 2000 | 500 |
AP20.380 | 38,0 | 140 | 1750 | 500 |
AP20.400 | 40,0 | 130 | 1750 | 500 |
